25 Measure Twice, Listen... Forever? Studio Acoustics Measurements

The Perfect Studio

The purpose of this (and many) studio builds is to create a great listening space, a place where one can mix and/or master audio with complete clarity and translation to the 'outside world'. To achieve this, we firstly need to know what constitutes a great listening space, an answer that has evolved throughout the years of studio design, but is often vaguely, and perhaps over-simplistically, defined as a room with a flat frequency response. Meaning all frequencies playback (at the listening position) at the same sound pressure level (dB SPL)... but is this what we really want?


The Flat Frequency Deniers

More often than not, we don't actually want to listen to a completely 'flat' system, and there have been several studies suggesting that we actually prefer, or at the very least more accustomed to, listening to music with a bass boost and a tilt to roll off the high frequencies, this is where room/speaker curves such as B&K curve originate. In 1974 Bruel and Kjaer conducted a study that measured the response of Hi-Fis in typical home listening environments, ie. how the general public consumes music, rather than how speakers sound in lab conditions. By analysing the frequency response of 5 sets of loudspeakers in 3 rooms, recording responses from human listening tests, then combining the data with pre-existing concert hall response curves they devised the optimum curve shown below. You can read the study itself here.



From this point on, many recording studios were designed to have their playback systems replicate the B&K curve. Since then, there have been further studies measuring listeners' playback preferences such as Harman's 'Listener Preferences for In-Room Loudspeaker and Headphone Target Responses' available at AES. Olive et al. (2013) found that 'The preferred in-room loudspeaker target response is not flat but has a bass boost of about 6.6 dB below 105 Hz and a treble cut of -2.4 dB above 2.5 kHz.' The black line on the graph below shows the preferred listening curve of speakers (headphones in cyan) from this study.



With the combination of consumers' preference and control over tonality, as well as speaker and headphone manufactures designing products with these curves in mind, designing studios with a perfectly flat frequency response appears to be fruitless. Creating a space with possibly not the most pleasing listening environment, and mixes unable to translate as convincingly to the real world, is not what we want! But often, when someone says a flat-frequency response, what they most likely mean is a smooth frequency response, with as few peaks and nulls in the room's response as possible.


Let's Face Facts

In reality, achieving even this kind of flat or smooth frequency is nigh on impossible, as there are too many influencing factors that can't be removed from a normal studio environment; the desk or console, instruments, furniture... the floor even. These elements will all interfere with soundwaves and contribute to the 'sound' of your studio, such as introducing comb-filtering at certain frequencies. But, as long as we establish an aim, we can try to get as close as possible, and as they say, shoot for the moon...


Only Half The Story

However, be aware that the frequency response isn't the whole picture, reverberation plays an important role in how a room sounds, and importantly, reverberation across the frequency spectrum. Too large a reverb time would create a cloudy, unclear environment, making mixing decisions harder, while too dry a space will sound unnatural and could lead to confused mixing decisions. It is arguably better to have an even spread of decay times across the frequency spectrum than it is to have a flat SPL response. Another aspect that can sometimes be ignored is the accuracy of the stereo field; we want to hear the same response from both the left and right speaker (or more if thinking about 5.1 or Atmos rooms). Being able to control all these factors is part of the art of studio design.



The Why and How of Measuring Acoustics

This is where the importance of taking acoustic measurements comes in; we can take initial readings, see where the problem areas are, track the progress of the build, and see if changes are working. Although we can trust our ears to a certain extent, we can't be expected to recall how a room sounded before some treatment was put in with any accuracy!


Taking acoustic measurements is a fairly simple process using a free piece of software called Room EQ Wizard or REW for short, an amazing program that can take readings of your room and display the results in a whole host of ways. As long as you've got an omnidirectional microphone, and an audio interface, you're good to go. Fortunately, I had a measurement microphone from my previous Sonarworks purchase, but there are some cheaper alternatives available such as the Behringer ECM8000.


REW will play a sine wave sweep out of your speakers, and the microphone will record the response. I won't explain exactly how to set it up here, as there are already lots of great tutorials online, such as this one from GIK Acoustics. It is best to record each speaker one at a time, and always from the same microphone position (unless experimenting with different listening positions). For best results, you can also measure your audio interface and upload the calibration file of your measurement microphone to ensure any anomalies in your equipment do not influence the recorded results.


Acoustic Readings and Reading Acoustics

Now that we've taken a measurement, what are we actually looking for? Well, these are three main graphs that we'll look at in this blog: Phase, SPL, and the Waterfall graph.


SPL - Displays the frequency response of the room, with decibels on the y-axis and frequency on the x-axis. This is the graph we tend to want to see a 'flat' or smoother line on. (Fig. 1. Seen in dark red on the top)


Phase - Displays the phase position of the sine wave, ideally, we want to see a smooth line transitioning through 0-360 degrees over and over again as the sine wave cycles. This display is 'wrapped' so the line will jump back to the top once a cycle is complete. (Fig.1. Seen in light red on the bottom)


Fig. 1. SPL and Phase Graph


Waterfall - Perhaps the most useful, and the one I'll refer to most in this blog, shows the SPL response, but crucially, also related to time. So, for how long each frequency 'rings out' in the room after the initial playback has occurred. The x-axis shows frequency, the y-axis shows SPL, and the z-axis shows time in milliseconds (fig.2). Ideally, we want a smooth initial SPL recording followed by a gentle, even decay across the whole frequency spectrum.


Fig. 2. Waterfall Graph

REW also displays some other useful graphs such as distortion, RT60, and spectrogram, but I won't get into them in this post.


A Note on Scale

Before we get into the actual measurements, I just want to highlight some issues when reading frequency response graphs, and a feature microphone and speaker manufactures often use to their advantage! This is the scaling, and smoothing of data. Below are three graphs, that are all the same reading but with different scales and smoothing. The first is smoothed to 1/48 dB per octave and zoomed in on the y-axis, the second has been smoothed to 1/3 dB per octave at the same zoom level, and the third has then been smoothed and zoomed out. Now, which one would you use to sell the idea that your room/microphone/speaker has a flat frequency response?



For most of the measurements I will show, they are for the right speaker only, apart from the final results. This is just to save on doubling up pictures and keeping things simple. Smoothing will be set to 1/48 dB per octave when showing SPL and phase, but using psychoacoustic smoothing for all other instances - as this algorithm correlates more closely to the perception of human hearing.


Reference Measurements

Let's begin with some base measurements, so we know what we're potentially aiming for. Below are some measurements from an example studio, which was professionally designed and built by an acoustic design company.


We can see that there is still a reasonable amount of peaks and troughs across the frequency spectrum, but the decay time across the board is fairly consistent, lasting around 130ms as we can see in the waterfall graph below. The phase is relatively smooth throughout with a couple of anomalies at 220Hz, 300Hz, and 1.7kHz, which you can see translates to nulls in the frequency spectrum.


The main problem areas are the large disparity in the room response below 50 Hz, with large peaks at 25 and 45Hz, a null at 38Hz, and a long decay time at 25Hz. A rather large peak at 150Hz is also a concern and something to be aware of when working in this room.


Now let's compare the example studio to a typical home spare room/bedroom studio with no acoustic treatment...


As we can see, although the frequency response doesn't look too bad in and of itself, the phase and waterfall graphs reveal the many acoustic problems of this room. The phase is frankly all over the place and there are large inconsistencies between how long different frequencies reverberate, which is going to massively cloud one's judgment when mixing.


And this is only the right speaker! If we combine this with the results of the left speaker, we'd see that the response from each speaker varies a lot, meaning the stereo image is going to be a mess as well! In the example professional studio, each speaker has a similar response, resulting in a clearer stereo image.



Basement Studio Results - Before



Now let's take a look at what I was working with! Above is a reminder of the empty basement room, and below are the initial readings. I think you'll agree, these might be some of the worst room acoustic measurements you'll ever see!




So, it was definitely going to be an uphill struggle, but I still needed a goal in mind of what I wanted to achieve:

  • A smooth frequency response

  • A tilted response, somewhere between the B&K and Harman Curves, essentially a 6-8dB tilt

  • Even decay times across all frequencies, ideally not too short

  • A smooth phase response

Ok, let's see how I got on!


Acoustic Measurement 1 - Bass Trapping



It was at this stage, once the speakers were mounted in the walls, that I could take the first set of measurements. Most of the bass-trapping had been done at this point, along with the ceiling, functionally, if not visually, and floor. The front wall wasn't finished at this point and was pretty much an empty shell, the diffuser was yet to be installed, and some broadband absorption was missing. With no speaker calibration, here were the results...



As you can see, a vast improvement from the initial measurement, with the reverb time coming right down to around 150ms for most of the frequency spectrum, and a much more even response overall, however, the response still has some large peaks and nulls, and the frequency response is too flat for my liking.


Acoustic Measurement 2 - Initial Speaker Calibration

At this point, I experimented with the Neumann KH310's onboard speaker controls to get a more even response. We can see a much more unified low-end and the peaks aren't quite as drastic as before.




Acoustic Measurement 3 - Finished Front Wall



A few changes for this measurement. First of all, the paneling on the front wall was finished - meaning a denser front wall acting more like an infinite baffle. A rug was moved in, although not sure how much difference this made to the readings! Then further speaker calibration to make up for the extended bass frequencies from the soffit mount. Speaker EQ:

  • -2.5dB Bass

  • -4.5dB Low Mid

  • 0db Treble

Again, slight improvements, the mid to high end is getting smoother, and there is a lot less ringing in the low-mid range.


Acoustic Measurement 4 - Diffuser



For this measurement, a diffuser and more absorption were added to the back wall.


Some further smoothing out of mid-range, and the peaks and nulls are just getting less extreme. Small improvements here and there!


Acoustic Measurement 5 - Further Tweaking

Fluffy bass absorption was added behind the front wall, completing the transition to a semi-solid/absorptive soffit wall. Further tweaks to the speaker calibration:

  • 0dB Bass

  • -4.5dB Low Mid

  • -1dB Treble


The room response is getting there now, more even across the board and with a gentle tilt.

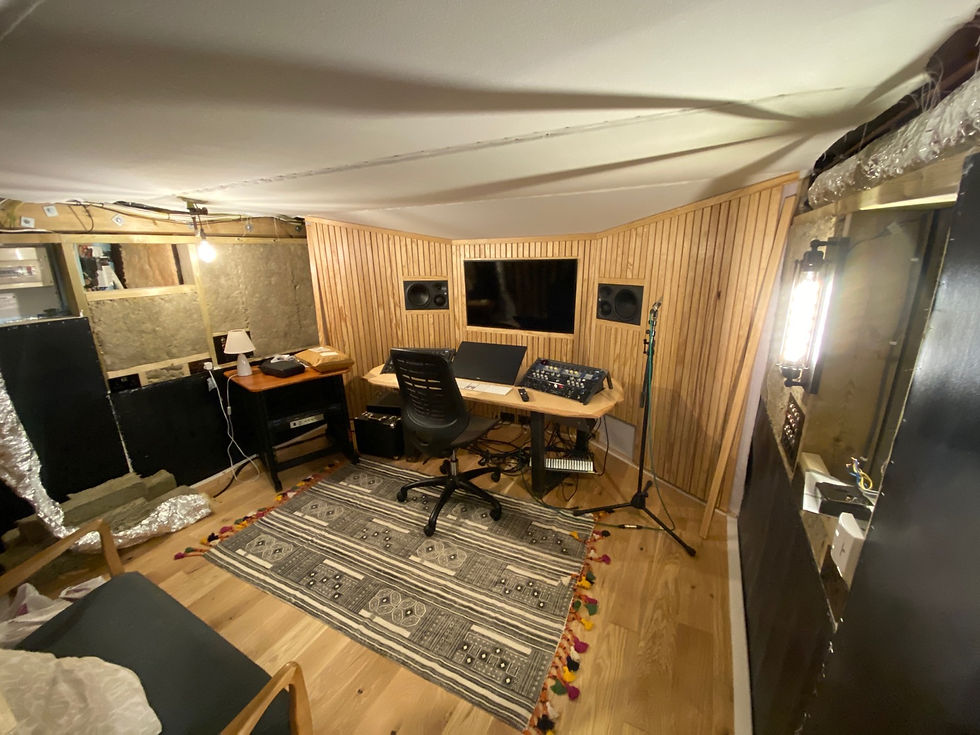

Final Raw Acoustic Measurements



At every point during the build, you're waiting for that moment that leads to a step backward in the room's response, and typically, this tends to happen in the last stage! Once you populate the studio with furniture and equipment there are a lot more variables to interfere with the response of the room. And this stage definitely had an effect on my studio build, it wasn't devastating but there was a definite slight increase in some of the peaks and valleys.


This lead to a few rounds of experimentation, changing how far forward the desk was, the listening (microphone) position, the position of the portable broadband absorbers around the room. Side to side, front to back, in the corners, etc.


Finally, after many combinations measured, I ended up on this configuration:

  • Desk pushed near to the front wall

  • Broadband absorbers on the sidewalls, cornering the front wall

  • Listening position at 123cm high (center of speakers) and 126cm from each speaker

And here are the results...


Studio waterfall graph
Final RAW waterfall graph for the left speaker

Studio waterfall graph
Final waterfall graph for the right speaker

We can see the issues that have arrived from truly finishing the space. The most obvious was the comb filtering caused by the desk at around 300-400Hz, causing a large dip in this area, especially from the left speaker, which makes me think the sidecar may also be involved in that equation. Another notable dip is the one around 150Hz. A ringing at just under 300Hz also appeared from the right speaker measurements, fortunately, this is around 40dB quieter than the initial loud sound, so hopefully doesn't impact listening that heavily.



From the SPL and Phase readings above, we can see that the phase of the room has improved to no end, with an incredibly linear phase reading, with only slight variations coming in because of the comb-filtering.





Room Correction Software

Before building the studio, when I was working out of the spare room, I used to use a piece of room correction software called Sonarworks Reference 4, which made a fantastic difference on an untreated room. Trying it on the finished studio I was hoping to get the final 5-10% out of the room. Unfortunately, any changes made were small, and if anything, worked against the design of the studio so I decided to leave it off...


Until I heard of Dirac Live, which had a trial that I thought I'd give a go... and then I had to buy it, as it fixed that extra 5-10% that I was hoping for. In a future blog post, I'll go into more detail, and compare the two systems. But for now, I'll just show the results Dirac Live had on my room's response.


Dirac Live Room Correction Curve
Dirac Live Custom Curve

Above is a snapshot of Dirac Live and the custom curve shape I based the correction for my room on, as you can see, it's around an 8dB tilt to the low-end, roughly following the L&R speaker responses you can see in purple and green. With further tweaking, I could get some incredible results around a tighter listening spot, especially in the low-end as seen below.


Studio Build Room Acoustic Waterfall Dirac Room Correction
Dirac Room Correction Waterfall - Left Speaker
Studio Build Room Acoustic Waterfall Dirac Room Correction
Dirac Room Correction Waterfall - Right Speaker



Final Results

Below are a few SPL graphs showing the before and afters with psychoacoustic smoothing.

studio acoustics before and after measurements
Before (red) and After (green) Room Response
Studio build acoustic measurement room response
Left and Right Raw Final Room Response
Room correction studio build acoustic response
Left and Right Final Room Response with Room Correction Software

Curtain Call

How I'm actually using my room now is with a curtain on the room correction. Meaning, I don't correct anything above or below certain frequencies, this leaves the option to listen to the natural highs of the speakers and lessens the sometimes artificial sound room correction can bring. As Dr. Sean Olive states in his presentation room correction above 500Hz mostly leads to 'speaker correction' rather than 'room correction'. I set my curtain to not correct any sound above 847Hz, still including to correct some of the mid-range problem frequencies, but reverting back to the natural sound of the speakers beyond that point.


Below are the results from the curtained room correction.


Studio room response control room acoustic measurement
Left and Right Curtained Room Correction (1/48 dB per Octave)

Final Thoughts

Showing recorded measurements are only part of the story however, another really big aspect is how it actually sounds to the human ear! So how does it sound?.. pretty darn good actually, I'm really happy with the results, even if we just focus on the 'raw' response without room correction. The phantom center is a little off to the left-hand side, but apart from that the imaging is incredible, I can pinpoint panned elements precisely, which I'm not entirely used to and is part of the reason I can hear that the phantom center is off a smidge. Fortunately, the room correction fixes this issue and puts it back to dead center. I believe my mixes and masters are translating better than ever, and it's a pleasure to listen to music in the studio, it's warm and the low end is clear and punchy.


For such a small room I was pleased with the amount of control I got out of the low-end, it's not perfect obviously, but it's much better than some other studios I've worked in.


The process of recording acoustic measurements has been invaluable to understanding what little changes can make a big impact, the positioning of the speakers, treatment, listening position can all make a huge difference. Even if you don't have any acoustic treatment in the room you're working in, I can't recommend giving it a measure yourself enough, even if it's just to help you understand your space better. After all, the more you know about the room you're mixing in, the more accurate the mixing decisions you make are going to be.

gif

Apologies for quite the long post this week, but I hope it's been interesting and that you've found some useful information in here. Keep an eye out for my comparison between different room correction software, coming soon!
